Renovation initial, the water and electricity first. Hydropower transformation is “technical activities” in decoration. In the decoration, the owner usually handed over to the home improvement company or professional hydropower master to lay the transformation.

For the decoration Xiaobai, the most frequently encountered question is: How much is the switch socket, what model? In the face of the material list given by Hydropower Master, most friends will feel awkward.

The switch socket is not bought, it is less buying, and the position is wrong. There will be a big impact on the life quality of the future.

Just like a friend’s home is being renovated, and after stealing the teacher with the water and electricity, it is sorted out.Close socket layout,Hurry and learn ~

What kind of model model is there in the switch socket?

At present, the popular switches in the market are 86, 118, 120, which can be subdivided into single-control, dual control, etc.

In addition to common double holes, three holes, five wells, there are multi-function sockets with USB sockets, 16A sockets for high-power electrical appliances, network TV special sockets, etc.

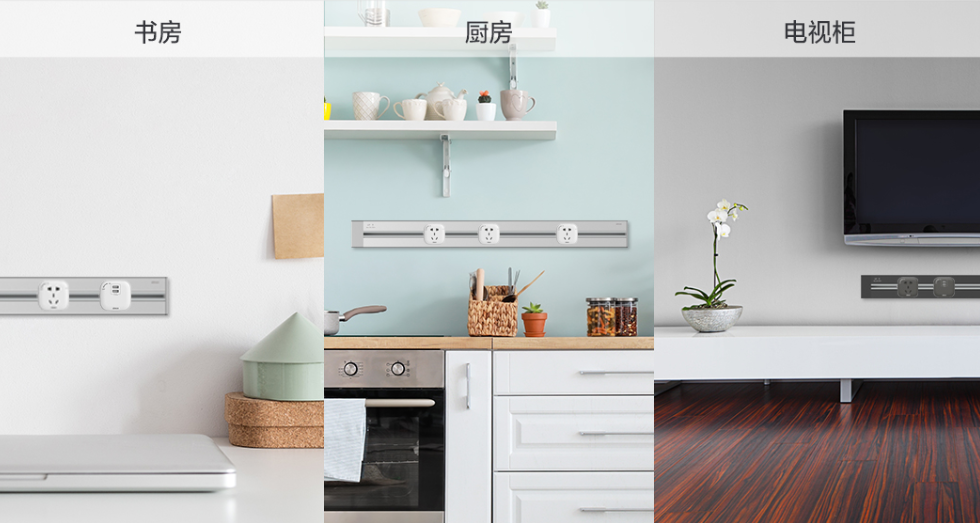

These are the most common switch socket models on the market. With the development of technology, many companies have also developed movable integrated track sockets, especially suitable for kitchen, study, living room space.

This type of track socket is convenient, or it can be combined with the use function.

Simply understand the type of switch socket, for the layout installation, we also need to study in depth ~

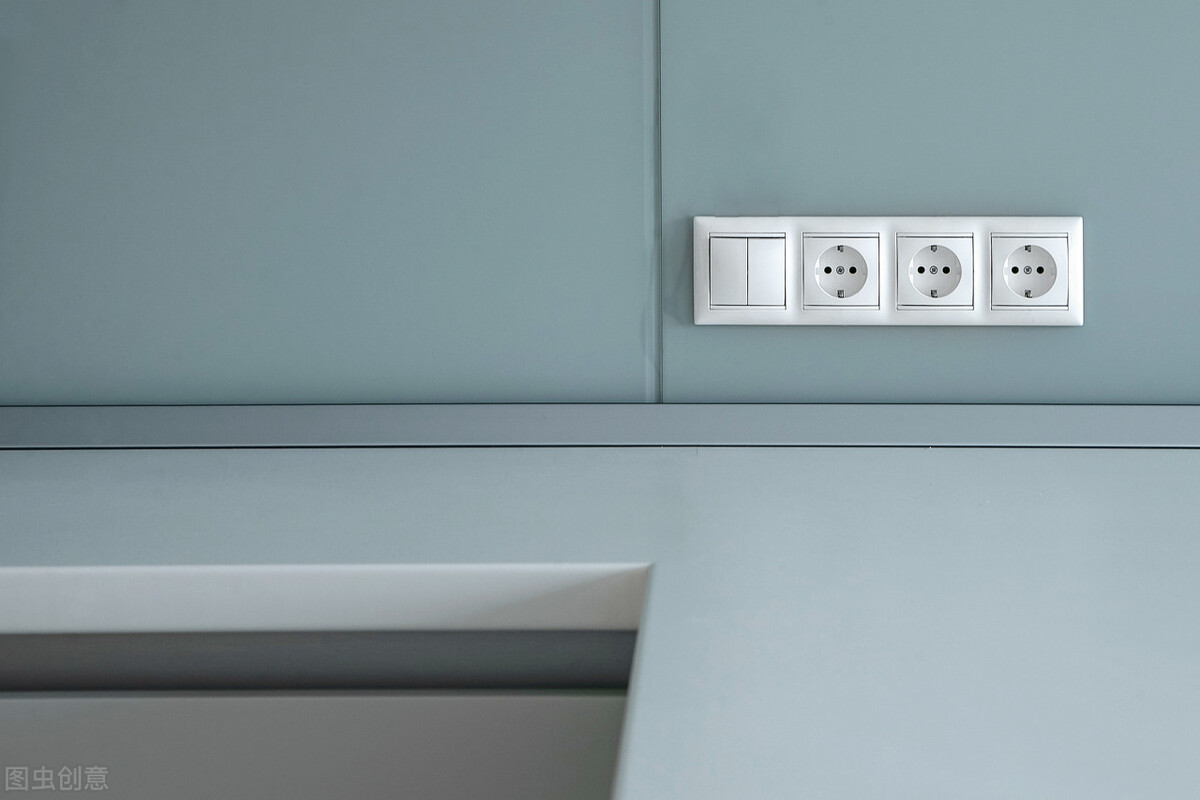

Switch socket layout

The number of switches and sockets is sapp. It is not enough after check in. It will pull the wiring board. If it is unsafe, it will cause the line mess; the switch socket is more, and the waste will not increase the construction installation cost.

So in accordance with home space, how do we needMounting position, quantity and height of layout switch socketWoolen cloth?

First, we need to understand the number of appliances, types of each space.

Like refrigerator, air conditioning, washing machine this largeFixed home appliancesIt is best to select a high power-specific socket of 16A.

Like hair dryer, vacuum cleaner, mobile phoneRemovable small appliances and digital productsIt is necessary to configure the corresponding number of sockets in the scenario.

Porch

Reserved switch, it is best to make a two-control, and control the ceiling lamp of the living room.

The socket needs to be installed 1-3, which needs to be supplied to the vacuum cleaner, sweeping the robot, smart wear mirror. The installation location should look at home appliance placement position, preferably one of the cabinets outside the cabinet.

Like the spare socket mounting height can be around 120-130 cm, the small night lamp socket is about 50 cm from the high degree.

living room

4 sockets near the TV, a high degree of 90cm, a TV special, a wired special, two standby; an air-conditioned socket, height at 180cm-200cm; 2 sides of the sofa installed 1 multi-function with USB socket. It needs to be installed for about 7.

开关需要一个，可同balcony、Porch做成多控开关。

Dinning room

Dinning room如果有餐边柜，可配置两个备用插座，高度在30cm和120cm左右；另外在餐桌附近安装两个插座，方便使用电火锅等小家电。

kitchen

kitchen是家电使用最多的空间，我们在安装开关插座的时候一定要做够、做好。

1 hood socket, height 180cm, 1 refrigerator socket, a height of about 100cm, other such as rice cooker, small kitchen, garbage processor, dishwasher, water purifier, microwave, etc., according to personal needs.

In the cabinet, the plane wall needs to be installed. If you don’t know how to install, you can consider what I mentioned above.Simon Simon Power Track Socket. Similarly to the three-wire, I can only install a socket before, I can install a row of sockets!

单轨道可承载8000W,大功率电器同时使用也可承载，明装嵌入都可用，同时，轨道长度从600mm到1200mm可满足kitchen、书房、living room等多个空间的使用。

bedroom

Reserved a TV socket, the height is around 90cm-100cm; 1 one in the bedside socket, the height is around 60-70cm; the door to the door is one, and it needs to be docal. Another air conditioning special socket is also required, 180cm high.

Child

插座开关配置除电视插座外，基本同bedroom配置一样，额外需要安装一个台灯插座，高度在1米左右。

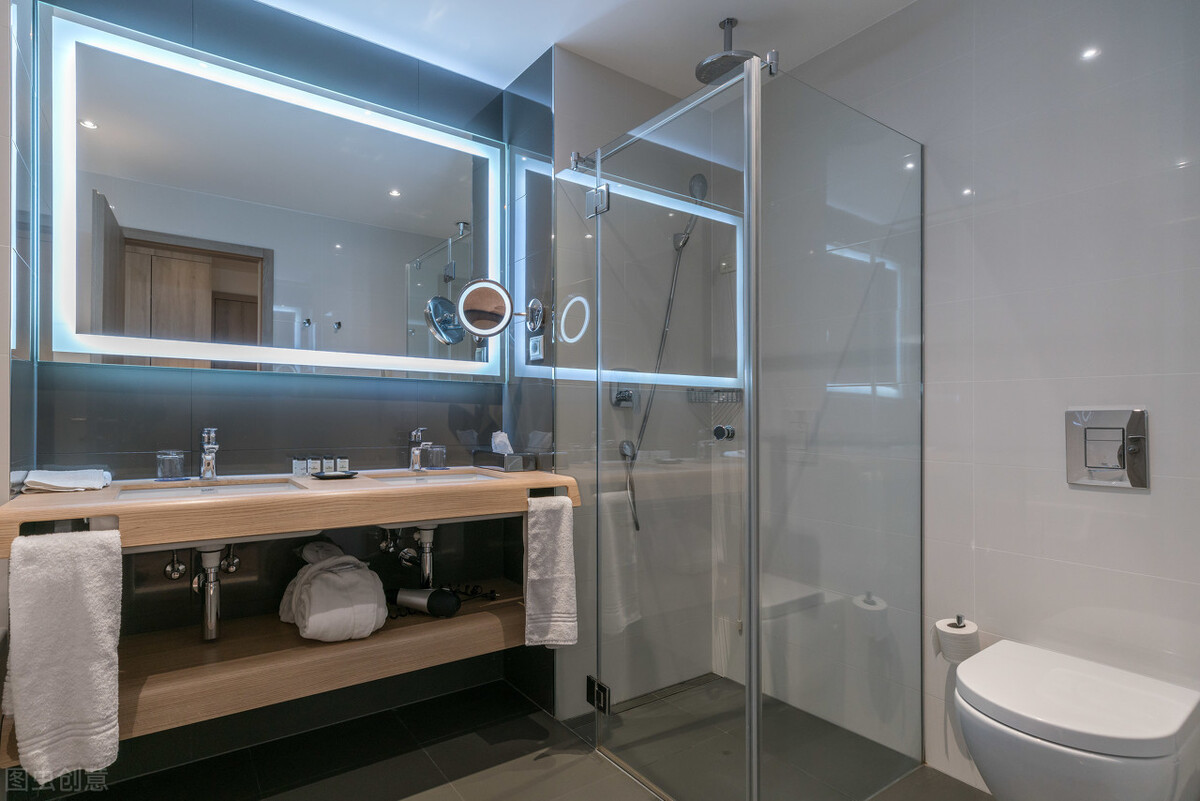

bathroom

bathroom的热水器需要大功率专用插座，需要带防水罩，高度在180cm-200cm左右;

1 waterproof socket is used in a hairdryer, which can be installed near the frame, and 1-2 multi-function sockets can be installed inside the mirror cabinet, which is convenient for electric toothbrush, razor, and smart mirror charging.

如果bathroom需要安装智能马桶，最好在马桶旁预留出专用的防水插座；洗衣机在bathroom的话，还要装一个洗衣机、烘干机专用的插座，高度在100-120cm左右。

bathroom开关除了吸顶灯照明外，还需要安装浴霸开关。

balcony

如果balcony不需要安装洗衣机，也不做学习办公使用，只作为休闲、晾晒衣物的区域。

需要安装插座1-3个，分别给电动晾衣架等小家电充电。开关需要安装一个控制balcony灯光。

In short, the layout of the socket switch is important, and it is more important to plan a reasonable plan. If you don’t design it when you are in front of the water and electricity, it’s hard to wait until you want to change the circuit. If you don’t knock down the wall, you will pull the wiring board. In order to avoid such problems, the renovation is initially ready to place the choice of choice and switch socket.
